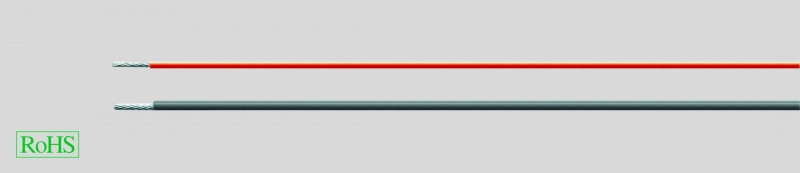

HELUFLON®-FEP-6Y, фторполимерные материалы, одножильный,-100°C до +205°C
STD_25511
Производитель —
Оценка (средняя 5)
Технические характеристики
Fluorinated polymeric insulation FEP (Fluorethylenepropylene )
Temperature range
-100°C to +205°C
(up to +230°C for short time)
Nominal voltage 600 V
Test voltage 2500 V
Insulation resistance
min. 2 GOhm x km
Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø
Radiation...
Запросить консультацию
Заказать продукцию
Характеристики
Характеристики — STD_25511
- Fluorinated polymeric insulation FEP (Fluorethylenepropylene)
-
Temperature range-100°C to +205°C(up to +230°C for short time)
- Nominal voltage 600 V
- Test voltage 2500 V
-
Insulation resistancemin. 2 GOhm x km
-
Minimum bending radiusflexing 7,5x cable Øfixed installation 4x cable Ø
-
Radiation resistanceup to 1x106 cJ/kg (up to 1 Mrad)
-
Conductor temperature rangeplain copper +130°Ctinned copper +180°Csilver pl. copper +200°C
- Stranded copper wire, bare, tinned, silver
-
Make-up fine wire stranded toDIN VDE 0295 cl.5, BS 6360 cl.5 and
- IEC 60228 cl.5
- Core insulation FEP-HELUFLON®
- Higher insulation resistance
- Low dielectric loss
- Not flammable
- Min. 20 kV dielectric strength
- Resistant to micro-cultures
- Do not permit any fungus-formation
- Absolute ozone resistant
- Absolute weather resistant
- Water absorption <0,01%
-
Minimal water vapour permeability(approx. 0,18 mgr/cm² in 24 hours)
-
Self-extinguishing and flame retardantaccording to DIN VDE 0482 part 265-2-1/EN 50265-2-1/ IEC 60332-1 (equivalentDIN VDE 0472 part 804 test method B)
- The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
- AWG sizes are approximate equivalent values. The actual cross-section is in mm².
-
Please complete the above part-no. for the colour required using the following table:1 = black, 2 = red, 3 = blue4 = brown, 5 = white, 6 = transparent7 = 2-colour, 8 = other colours
HELUFLON® cables are predominantly used for installing in control cabinets subjected to high thermal effects as well as in brickworks, heaters, kitchen fitments and measuring appliances as well as in the chemical industry. These cables are non-flammable and resistant to acids, alkalis, solvents, oil and petrol.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
| Art.-Nr. | Aderzahl x Nennquer- schnitt mm² |
Außen-Ø ca. mm | Cu-Zahl kg / km | Gewicht ca. kg / km | Preis EUR / 100m Cu 150,- |
| 25511 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25520 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 607,00 |
| 25512 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25513 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25514 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25515 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25516 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25517 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25518 | 1 x 0,14 | 1,0 | 1,35 | 2,6 | 51,00 |
| 25530 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 1846,00 |
| 25521 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25522 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25523 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25524 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25525 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25526 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25527 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25528 | 1 x 0,25 | 1,16 | 2,4 | 4,1 | 65,00 |
| 25531 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25532 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25533 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25534 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25535 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25536 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25537 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25538 | 1 x 0,5 | 1,42 | 4,8 | 8,0 | 71,00 |
| 25541 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25542 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25543 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25544 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25545 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25546 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25547 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25548 | 1 x 0,75 | 1,62 | 7,2 | 9,7 | 91,00 |
| 25551 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25552 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25553 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25554 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25555 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25556 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25557 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25558 | 1 x 1 | 1,9 | 9,6 | 12,7 | 119,00 |
| 25561 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25562 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25563 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25564 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25565 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25566 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25567 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25568 | 1 x 1,5 | 2,2 | 14,4 | 17,9 | 134,00 |
| 25571 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25572 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25573 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25574 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25575 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25576 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25577 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25578 | 1 x 2,5 | 2,65 | 24,0 | 26,4 | 163,00 |
| 25581 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25582 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25583 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25584 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25585 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25586 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25587 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25588 | 1 x 4 | 3,2 | 38,0 | 43,1 | 215,00 |
| 25591 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25592 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25593 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25594 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25595 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25596 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25597 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25598 | 1 x 6 | 4,4 | 58,0 | 65,9 | 327,00 |
| 25601 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25602 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25603 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25604 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25605 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25606 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25607 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25608 | 1 x 10 | 5,3 | 96,0 | 115,0 | 632,00 |
| 25611 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25612 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25613 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25614 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25615 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25616 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25617 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
| 25618 | 1 x 16 | 8,0 | 154,0 | 175,0 | 661,00 |
